3.5 inch 4 wire resistive touch panel

General specifications

4 wire resistive touch screen 3.5" tft lcdpanel 320x240

Product details

Touch size 3.5 inch
Type 4 wire resistive touch panel
Interface 4 wire pitch 1.0mm
Working voltage DC5V
Working current 1mA
Insulation impedance 20Mohm(25V DC)
Operation pressure 10-100g

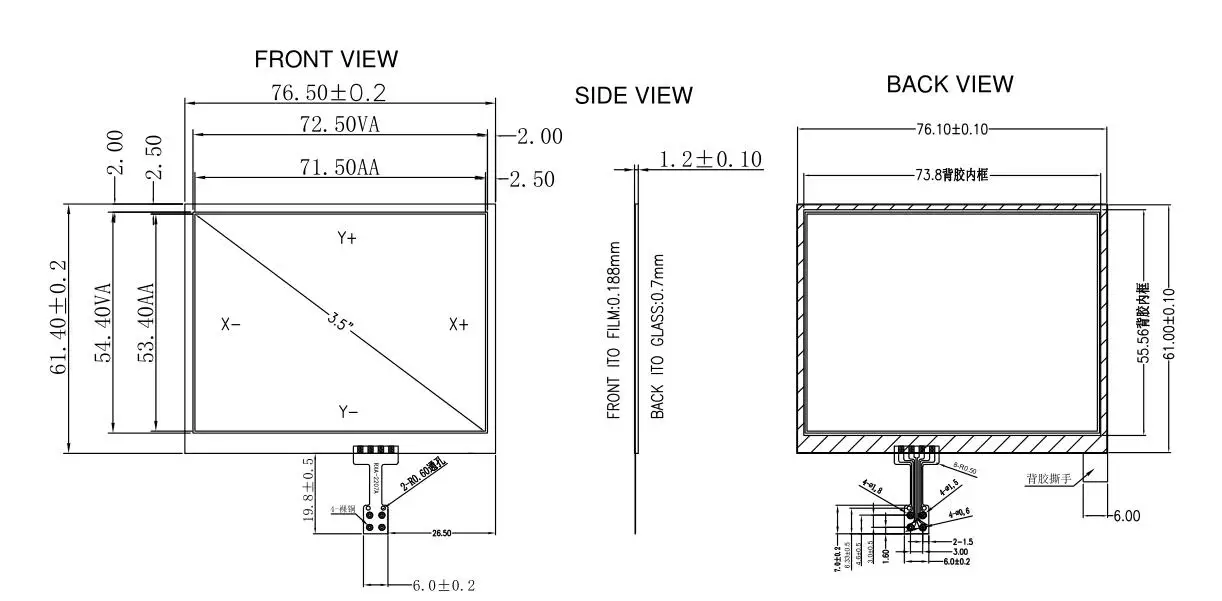

Active Area 71.5x53.4mm
Outline dimension 76.5x61.4mm
Product name 3.5 inch resistive touch panel
Product Keywords resistive touch screen 3.5",3.5 inch 4 wire resistive touch panel



Resistive touch screen 3.5" panel 320x240
